HDPE Split Type Hose Floats With Strong Impact Resistance For Buoyancy Pipe Floaters

Brand Name : Hongruntong Marine

Model Number : HM-HF61

Certification : ABS, DNV, RMRS, CCS, LR, BV, SGS, V-Trust

Place of Origin : Beijing, China

MOQ : 1

Price : $55-$286

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 18010 Pcs Per Month

Delivery Time : 5-7 Work Days

Packaging Details : Wooden Pallets, Wooden Box

Plastic Modling Type : Mould

Product Name : Hose Pipe Floater

Material : HDPE

Internal Filled : EPS foam

Color : Orange, Yellow, or as customer's request

Pipe Diameter : 200mm-900mm

Floater Inner Diameter : 220mm-940mm

Floater Outer Diameter : 500mm-2200mm

Floater Length : 800mm-2500mm

OEM : Warmly Welcomed

Application : Dredging Project

Packing : Pallet Packing

Contact Now

HDPE Split Type Hose Floats Buoyancy Pipe Floaters With Strong Impact Resistance

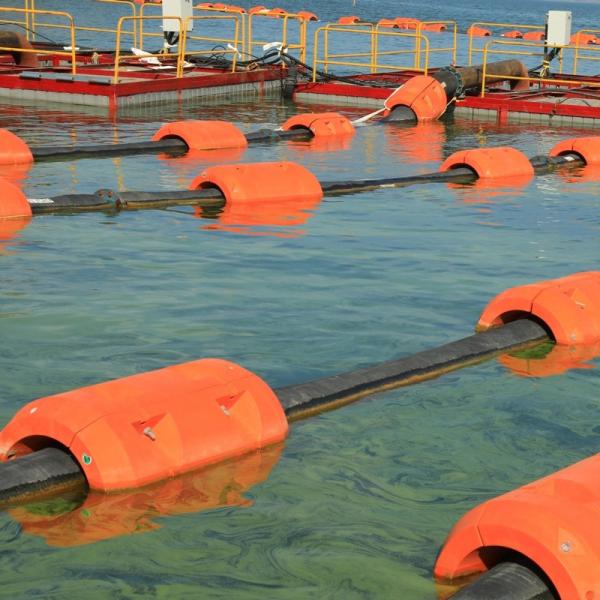

Hose Floats are engineered buoyancy modules designed to provide flotation support, positional stability, and structural protection for floating hose systems operating in offshore oil and gas terminals, single point mooring systems, marine transfer facilities, and offshore production environments.
Case Study
A national oil export terminal in Southeast Asia modernized its offshore crude oil loading infrastructure using our Hose Float system. The existing arrangement had been in service for over ten years and was experiencing increasing maintenance requirements. After implementing our customized Hose Float configuration, the terminal recorded improved hose stability during tanker loading operations, reduced dynamic loading, and significantly lower maintenance costs.
HDPE Split Type Hose Floats With Strong Impact Resistance For Buoyancy Pipe FloatersHDPE Split Type Hose Floats With Strong Impact Resistance For Buoyancy Pipe Floaters
Specifications
Item Requirements Item Requirements
Tensile Strength ≥13.1MPa Water Absorption 1-2g/100cm2
Break Elongation ≥11.1% Breaking Strength 0.08-0.1MPa
Impact Strength ≥32.4KJ/m2 Breaking Elongation 4-6%
Bending Strength ≥15.7MPa Compressive Strength 0.1-0.24MPa

Weather Resistance

After total aging energy≥3.5GJ/m2

 Break Elongation %≥ 10
Oxidative Induction Time 200°Cmm≥ 10
Characteristic
* Good flexibility, excellent impact resistance, particularly suitable for construction in open sea * Lightweight weight easy to install and handle, low costs for moving * High corrosive resistance, 3 times longer life than steel floats * Higher cost performance than steel float


Float I.D. Float O.D. Float Length Thickness Net Buoyancy
mm mm mm mm KGS/Float
160-180 500 800 4 280
225 600 700 4 320
280 700 900 4 450
340 1000 1000 6 500
410 1100 1100 6 550
460 1200 1200 6 1200
510 1300 1300 7 1250
560 1300 1500 8 1360
610 1400 1600 8 1600
630 1480 1600 8 1950
680 1550 1800 8 2200
730 1620 1900 9 2300
780 1700 2000 9 2700
840 1850 2100 12 3200
890 2000 2400 12 4600
940 2040 2500 13 4900
1150 2400 2600 14 6500
NOTE: The floaters customized are available.
Key Features
High Density Closed-Cell Foam Buoyancy System
The buoyancy core utilizes high-density closed-cell foam specifically developed for marine flotation applications, ensuring stable buoyancy performance even if localized external damage occurs.
Impact-Resistant Polyethylene Shell Construction
Manufactured from high-performance polyethylene using rotational molding technology, providing excellent resistance to UV radiation, seawater corrosion, hydrocarbon exposure, and mechanical impact.
Optimized Buoyancy Distribution Engineering
Engineered to create controlled buoyancy profiles that maintain desired hose configurations while minimizing stress concentrations throughout the hose assembly.
Modular Split Design for Operational Flexibility
Split-body configuration allows installation directly around existing hose systems without requiring hose disassembly, simplifying installation and maintenance procedures.
Applications
  • Offshore Crude Oil Transfer Systems
  • FPSO Export and Production Facilities
  • Marine Fuel and Liquid Transfer Infrastructure
Why Choose Hongruntong Marine
  • Specialized Expertise in Marine Flotation Engineering
  • Advanced Manufacturing and Material Technology
  • Customized Engineering and Project Support
  • Comprehensive Quality Assurance and Lifecycle Support
Frequently Asked Questions
What materials are used in Hose Floats?
Hose Floats are typically manufactured using high-density closed-cell polyethylene foam encapsulated within a rotationally molded polyethylene shell.
How is the required buoyancy capacity determined?
Buoyancy requirements are calculated based on hose diameter, hose weight, fluid density, environmental conditions, operating configuration, and desired hose profile.
Can Hose Floats be customized for specific projects?
Yes. Dimensions, buoyancy ratings, shell thickness, fastening systems, and installation configurations can be customized to suit project-specific requirements.
What maintenance is required during operation?
Routine visual inspections are generally sufficient to verify continued operational performance.
What is the expected service life of Hose Floats?
Under normal offshore operating conditions, properly manufactured Hose Floats can provide reliable performance for many years while maintaining stable buoyancy characteristics.
